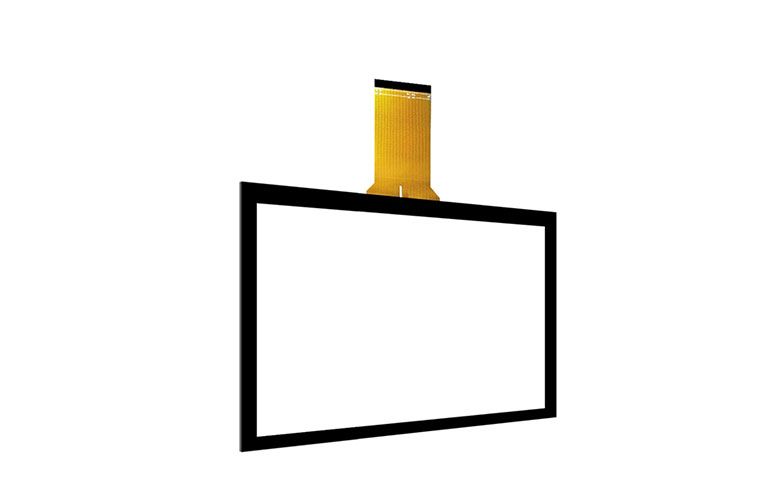

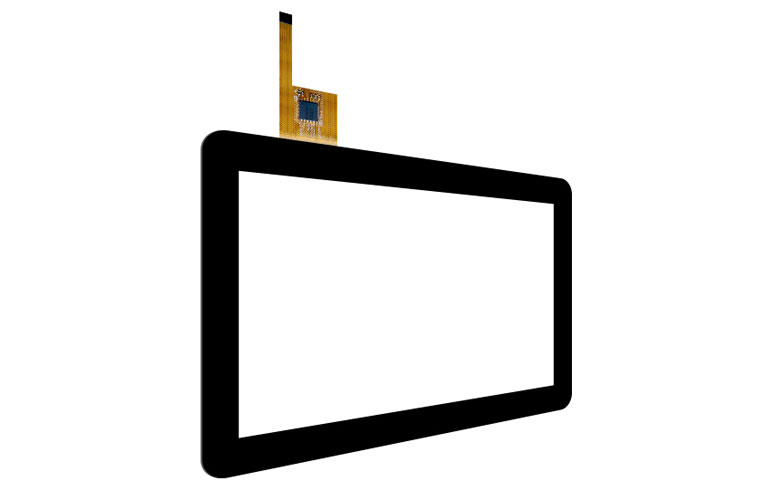

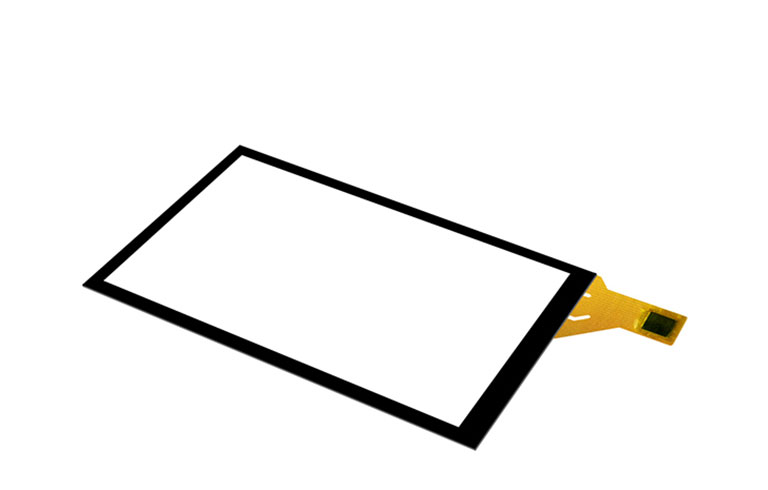

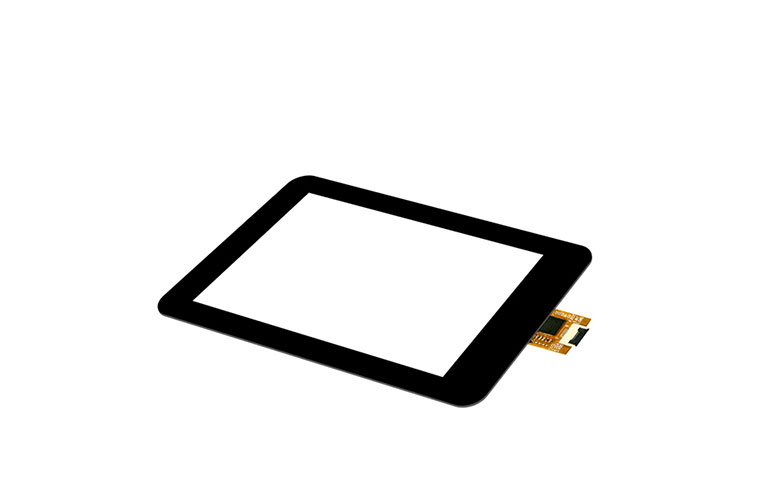

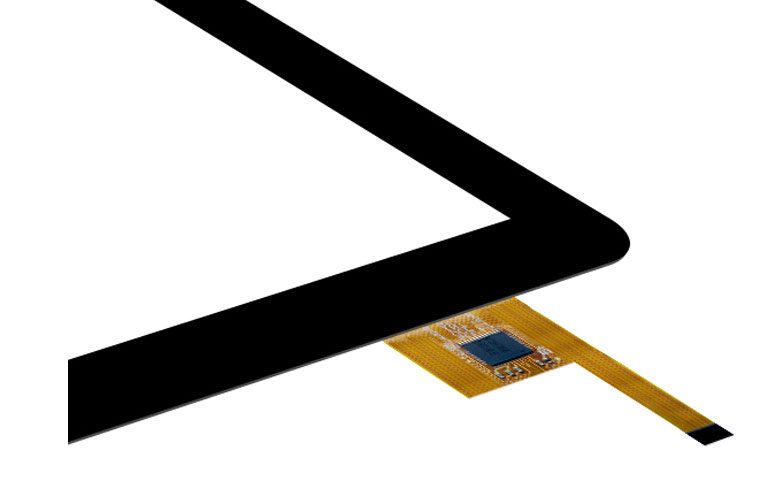

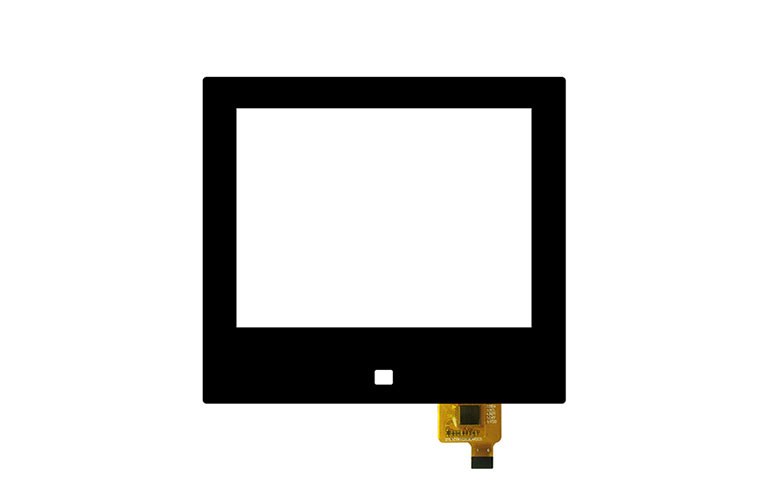

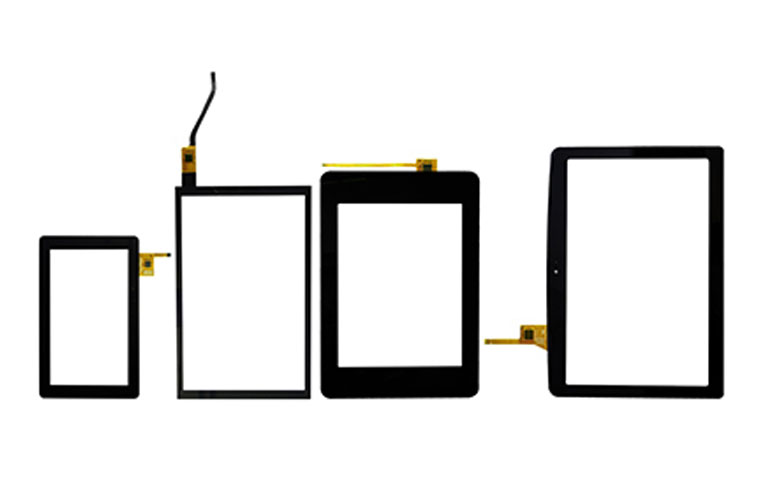

Capacitive Touch Screen 3.5 to 23.6 inches
Regular Size: 3.5 to 23.6 Inches
Touch Type：PCAP,5-10 Points Touch
Material： Glass+Glass
Surface Hardness: 7H
Resolution：4096 X 4096
Interface：I²C
Certificates：CE,FCC,RoHS
Warranty：1 Year
Product Overview
sepelectronics's capacitive touch screens are based on proven projection capacitive touch technology,the preferred solution for applications that demand reliability,input flexibility,and anti-interference.We can provide proprietary sepelectronics technology to complete excellent touch response for you,they are free and drift-free,accurate and efficient.
Product Quality
Projected capacitive (PCAP) supports 5-10 points touch,commercial advantages –superior response time,robust,high optical clarity,and slim or bezel-less design.We use stable IC and bonding equipment to maintain high yield and quality.Touch function requires professional calibration to avoid the interference of the motherboard,driver board and other electrical appliances to achieve the best experience.We have professional knowledge,technology and clean room to bring customers high reliability products!
Product Customizable
Touch screen size
FPC outlet location
ITO glass thickness
Customer Logo
Glass of surface treatment AG, AF, AR.
Technical parameter
| Product Name: | Capacitive Touch Screen |
|---|---|
| Touch Points: | 5-10 Points |
| Regular Size: | 3.5 inches to 10.1 inches |
| Frame Colour: | Black |
| Resolution: | 4096 X4096 |
| Response Time: | ≤10ms |
| Input Method: | Finger,Pen Stylus |
| Interface： | I²C |
| Temperature: | Operation：-20°C~60°C，Storage：-30°C~70°C |
| Humidity: | Operation：＜90%RH，Storage：＜90%RH |
| Support Systems: | Windows,Linux,Android |

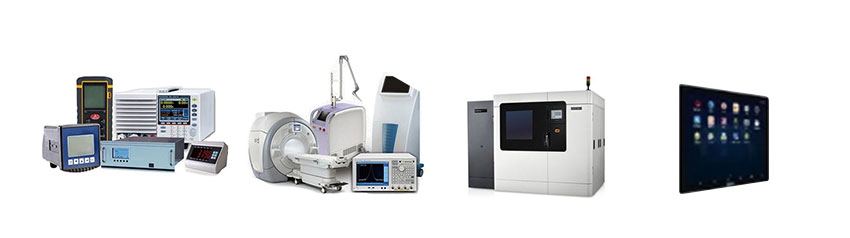

Product Applications
